Electric Pallet Stacker UP20

Electric Pallet Stacker UP20

Versatile pedestrian double-decker for 2,000 kg. Great price as always.
Outlet Sold out
8.649 €
6.499 € 7.798,80 € VAT included
+
Options
or request a leasing offer from 134,53 € per month

Available from: Tuesday, 25 March

SKU 50000172-0

Questions? We’re here to help you

0800 080667

This all-electric UP20 double deck pallet stacker ensures increased efficiency in the internal handling of goods, as the initial lift function enables dual pallet transport. It can be used to lift and stack Euro-pallets weighing up to 2,000 kg to a height of 2,500 mm (depending on the model) as well as to load and unload trucks. The pallet stacker is designed for daily operation and is therefore perfect for the industrial sector.

  • Initial lift: enables driving over door thresholds and loading bridges as well as dual pallet transport
  • Maximum travel speed of 4.5 km/h (loaded) thanks to fully electric drive
  • 210 Ah strong lead-acid batteries for intensive daily operation
  • Maximum load capacity of 2,000 kg
  • Quiet and stable motion thanks to Polyurethane (PU) castors
  • Small Turning radius of 1,705 mm: Real workload reduction even in the most confined areas
  • With the aid of 1,100 mm long forks, Euro-pallets can be lifted and moved to a maximum of 2,500 mm (depending on model)

    • Features

    elektrischer doppelstock-hochhubwagen up20 für 2000kg - hubhöhe 1,6m - 2,5m 5

    Double the load - half the time

    With this double-decker high lift truck you can achieve more in less time.

    High load capacity

    The UP20 reach stacker is robust and strong. It lifts up to 2,000 kg.
    elektrischer doppelstock-hochhubwagen up20 für 2000kg - hubhöhe 1,6m - 2,5m 14

    Powerful lead batteries

    The powerful 210 Ah battery runs at full power for 6 hours.

    Technical data

    General
    Capacity
    2000 kg
    Weight
    950 kg
    Forklift licence needed
    no
    Sound level EN-12053
    65 dB
    Material
    steel
    Chassis surface
    powder coated
    Seal
    CE
    Min. radius curve
    1400 mm
    Warranty
    2 Jahre Gewährleistung
    SKU
    50000172-0
    Brand
    Pallit
    Wheels
    Wheels material
    polyurethane (PU)
    Steering wheel diameter
    250 mm
    Steering wheel width
    70 mm
    Fork roller type
    tandem roles
    Load roller wheel diameter
    80 mm
    Fork roller width
    70 mm
    Lift
    Lift height
    2500 mm
    Free lift
    no
    Lift motor power
    1.2 kW
    Lift speed, unladen
    0.04 m/s
    Mast type
    Triplex
    Lift type
    electric
    Drive
    Drive motor power
    1.2 kW
    Drive motor type
    alternating current (AC)
    Travel speed, unladen
    5.2 km/h
    Drive
    electric
    Brake
    electromagnetic brake
    Battery
    Battery type
    lead batteries
    Operating time
    6 h
    Battery capacity
    210 Ah
    Voltage
    24 V
    Battery voltage
    24 V
    Battery weight
    196 kg
    Battery dimensions
    750x170x580 mm
    Battery charger
    external charger
    Delivery
    Delivery
    carrier
    Delivered as
    on pallet
    Links

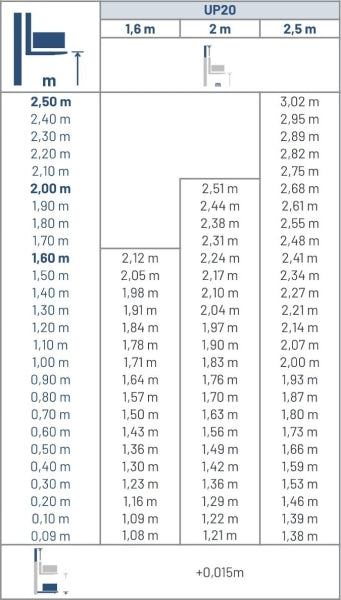

    Mast height table
    Capacity chart
    Product brochure

    Dimensions

  • Capacity
    Fork length
    Height, lowered
    Lift height
    Weight
    Wheels material
    Battery capacity
    Battery type
    Initial lift height
    Load centre
    Operating time
    Warranty
    Free delivery
    Customer Reviews
    Price

  • Electric Pallet Stacker UP20

    2000 kg
    1100 mm
    1382 mm
    2500 mm
    950 kg
    polyurethane (PU)
    210 Ah
    lead batteries
    120
    600 mm
    6 h
    2 Jahre Gewährleistung
    Tuesday, 25 March
    6.499 € 7.798,80 € VAT included
    8.649 €
    -25%
