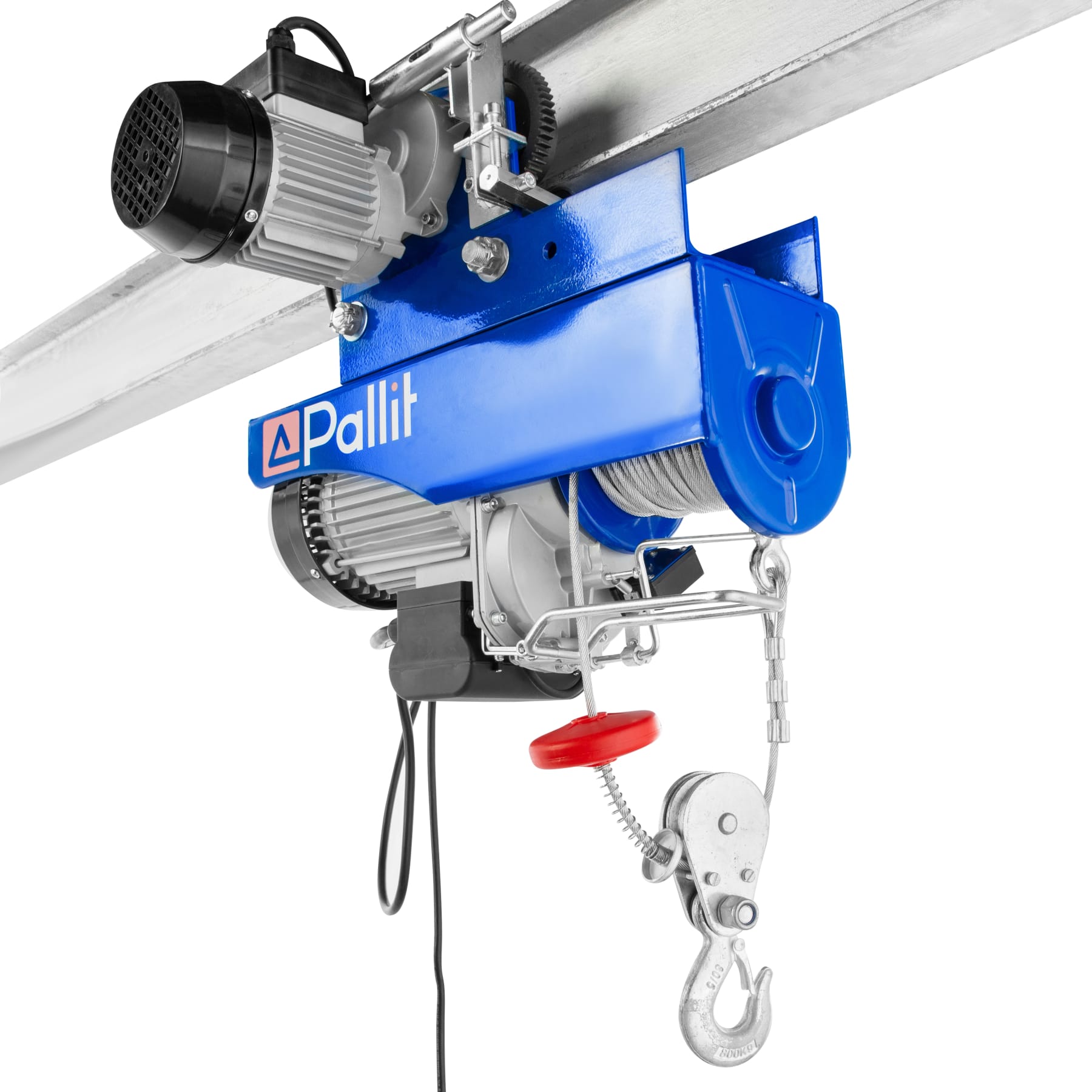

Electric Hoist with Beam Trolley COMBI

Electric Hoist with Beam Trolley COMBI

Leistungsstarke Kombi für schwere Lasten.
BLACK FRIDAY Deal – 10 %
414 €
373 € 447,60 € VAT included

⏰ Black Friday discount valid only until Monday, December 1st

Free delivery: Thursday, 4 December

📢 In use by 322+ companies across Europe

Questions? We’re here to help you

0800 080667

The electric cable winch with integrated trolley is an optimal solution for versatile lifting work in warehouses, garages and workshops.

  • Lifting capacity: Lifts loads up to 1,000 kg (double hook)
  • Lifting height: 12 m (single hook) or 6 m (double hook)
  • Motor of the cable pull: Equipped with a 1600 W motor with overheating protection
  • Trolley motor: 180 W motor power
  • Travel speed: Maximum travel speed of the trolley at 16 m/min
  • Control: One remote control for cable winch and trolley, power connection required
  • Installation: Suitable for H-beams with a flange width of 68 - 110 mm

Technical data

General
Capacity
1000 kg
Capacity, double cable
1000 kg
Capacity, single cable
500 kg
Weight
50 kg
Sound level EN-12053
71 dB
Material
steel
Colour
Blue
Cable length
12 m
Wire cable diameter
6 mm
EN standard
EN14492-2
Seal
CE
IP protection type
IP54
Insulation class
1 | 2 | 4
Control cable length
1.5 m
Power cable length
0.65 m
Rated current
7.5 A
Thermal overload protection
Yes
Min. radius curve
1000 mm
Brand
Pallit
Product ID
10010490-0
Lift
Lift motor power
1.6 kW
Lifting height, single cable
12 m
Lifting height, double cable
6 m
Lifting speed, single cable
8 m/min
Lifting speed, double cable
4 m/min
Drive
Drive motor power
180 kW
Battery
Voltage
230 V
Delivery
Delivery
delivery service
Delivered as
2 packages (partially assembled)
Links
Product brochure
Safety instructions
Product manual

Dimensions

  • Capacity
    Capacity, double cable
    Capacity, single cable
    Weight
    Lifting speed, single cable
    Power cable length
