Electric three-wheel forklift EASY-M for 1.2t to 4m

Elektro-Dreiradstapler EASY-L für 4,8m 1

Electric three-wheel forklift EASY-M for 1.2t to 4m

Name: Electric three-wheel forklift EASY-M for 1.2t to 4m
Brand: Pallit
SKU: 10010887-0
Price: 17919.0 EUR
Availability: InStock

A manoeuvrable electric forklift truck up to 1.2t in tight spaces. Affordable as always.

17.919,00 € 21.502,80 € VAT included

or request a leasing offer from 370,92 € per month

SKU 10010887-0

Our EASY-M is a three-wheel forklift for indoor use in confined spaces. It is compact, maneuverable, light, quiet and inexpensive. The EASY series is one of the cheapest forklifts on the market.

Load capacity: Loads up to 1,200 kg
lifting height: 4 m (4000 mm)
Full free lift: Lifting pallets without changing the forklift height
Drive: Powerful electric motor with front-wheel drive for high driving speeds
Battery : 280 Ah lead-acid battery with external charger ( 48V / 35A)
Control: Smooth acceleration and maneuvering without jerking thanks to the branded control unit from the Italian quality brand Zapi
Cascade sideshift : Allows loads to be moved sideways - so the forklift does not have to be repositioned
Safety: rearview mirror, LED taillights and numerous safety features, including emergency stop switch and OPS system
Tires: Solid rubber tires are durable and non-slip
Use: The EASY-M three-wheel forklift excels in confined spaces - in narrow aisles, warehouses with low ceiling heights, in containers and in trucks

Features

Elektro-Dreiradstapler EASY-L für 4,8m 5

Mission

This electric forklift is a compact and maneuverable three-wheel front loader for narrow aisles, trucks and containers. Its electric motor is quiet and emission-free.

triplex mast

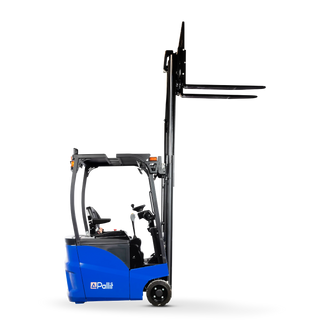

The EASY-M reaches a lifting height of 4000 mm. This makes it ideal for stacking, transporting, loading and unloading trucks and for storing and retrieving goods from pallet racks.

Elektro-Dreiradstapler EASY-L für 4,8m 3

Easy maneuvering

AC controller and MOSFET controller for easy driving, lifting and steering.

free lift

This three-wheel forklift has a free lift of 1,061 mm. This means that the lifting carriage can be raised to the height of the outer forklift frame at 2 m before the inner masts of the lifting frame extend.

Elektro-Dreiradstapler EASY-L für 4,8m 2

driver's cab

Comfortable, well thought out and gentle on the driver.

Technical data

General

Capacity

1200 kg

Weight

2240 kg

Sound level EN-12053

70 dB

Axle loading, unladen

860/990 kg

Axle loading, laden

2740/310 kg

Material

steel

Seal

CE

SKU

10010887-0

Brand

Pallit

Wheels

Wheels number

2x/ 2

Tire size, front

4.00-8 ″

Tire size, rear

3. 50-5 ″

Lift

Lift height

4000 mm

Free lift

no

Free lift height

1061 mm

Mast type

triplex

Tilt fork carriage

3/5 °

Drive

Drive motor type

alternating current (AC)

Travel speed, unladen

10 km/h

Gradeability, unladen

10 %

Max. gradeability, laden

6 %

Drive

electric

Brake

hydraulic brake

Parking brake

hydraulic

Battery

Battery capacity

280 Ah

Battery voltage

24 V

Battery charger

external charger

Delivery

carrier

Delivered as

rolling (completely assembled)

Links

Capacity chart

Dimensions

Fork length

1150 mm

l
Lift height

4000 mm

h3
Free lift height

1061 mm

h2
Load centre

500 mm

c
Height, lowered

2515 mm

h1
Height, extended

4865 mm

h4
Height, cabin roof

1975 mm

h6
Length

2570 mm

l1
Ground clearance

90 mm

m2
Ground clearance, center of wheelbase

80 mm

m2
Fork dimensions (DIN ISO 2331)

35x100x1150 mm
Fork height

35 mm

s
Wheelbase

1130 mm

y
Load distance

265 mm

x
Seat height

980 mm

h7
Coupling height

540 mm

h10

Width

922 mm

b1
Fork carriage width

825 mm

b3
Fork width, single fork

100 mm

e
Tread, front

800 mm

b10
Tread, rear

186 mm

b11
Turning radius

1350 mm

Wa

Capacity

Fork length

Free lift height

Height, lowered

Lift height

Weight

Battery capacity

Load centre

Max. gradeability, laden
