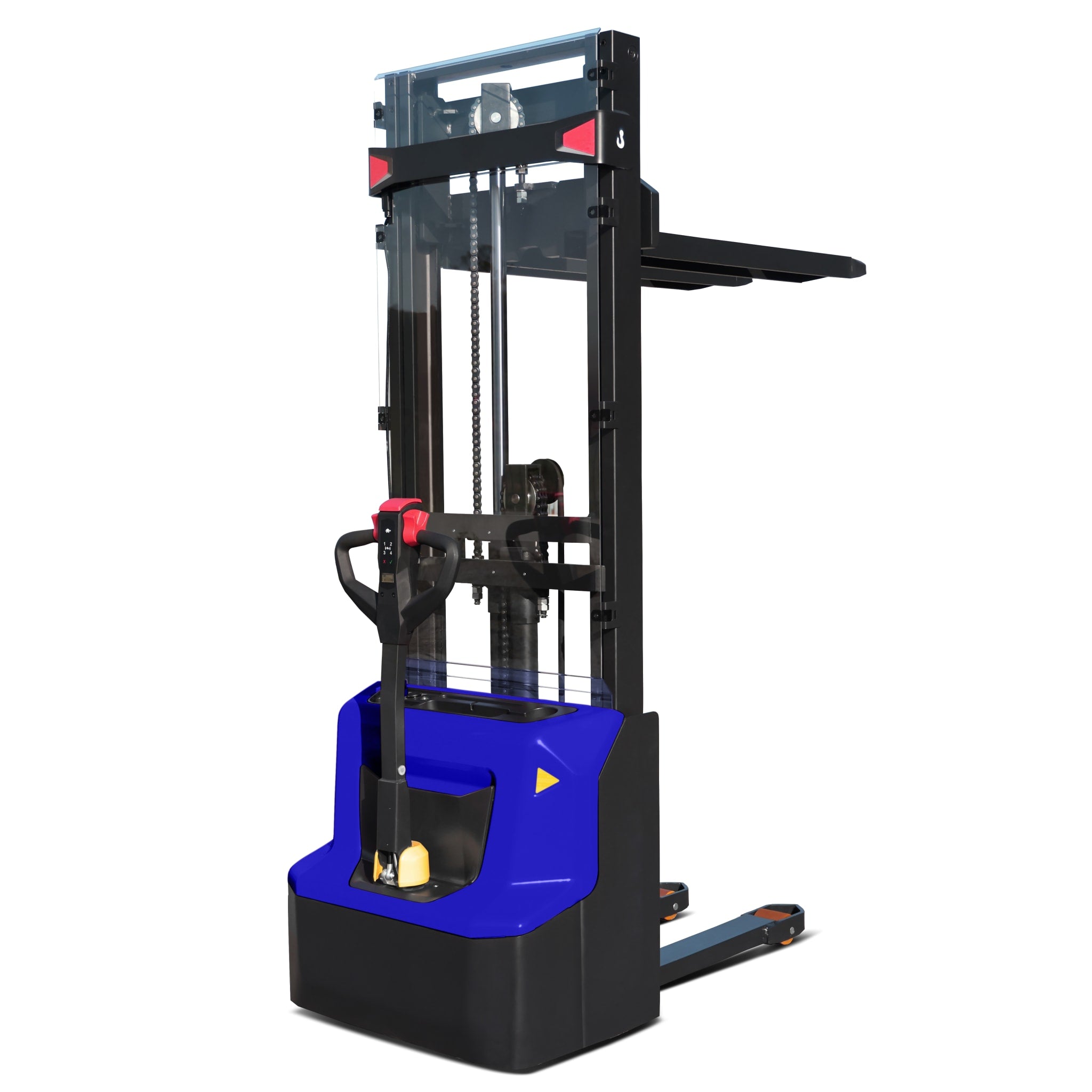

Lithium high lift truck SMART-XXL with free lift

Name: Lithium high lift truck SMART-XXL with free lift
Brand: Pallit
SKU: 10011576-2652
Price: 5775.0 EUR
Availability: InStock

Like our SMART-XL, but with free lift function.

5.775 € 6.930 € VAT included

or request a leasing offer from 119,54 € per month

lifting height

Available from: Friday, 13 March

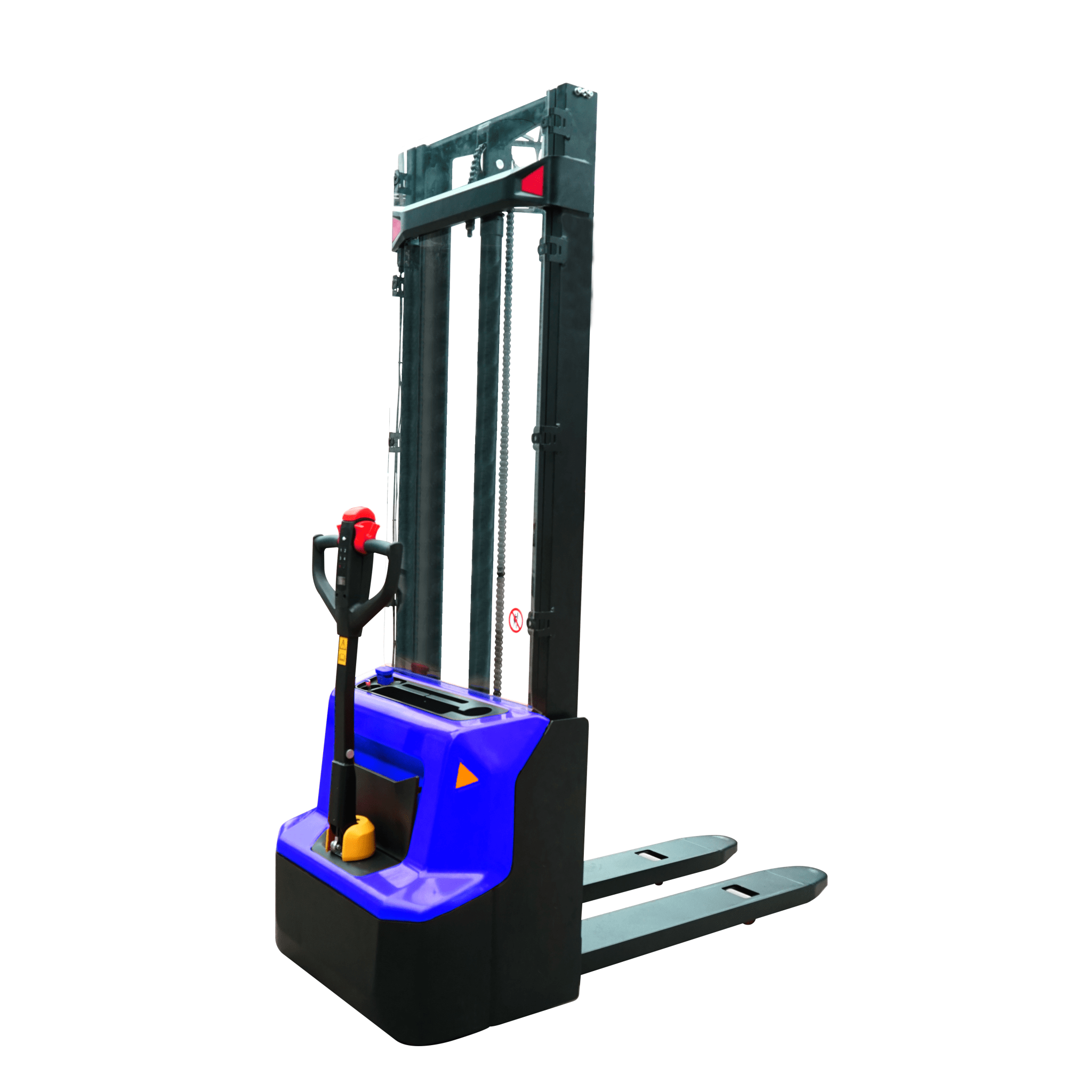

The SMART-XXL is a compact electric pallet stacker based on the proven SMART-XL model – but with one crucial addition: full free lift. This special feature allows the load to be lifted without changing the overall height of the mast – a clear advantage in low ceilings or tight warehouse spaces. Like its sister model, the SMART-XXL also impresses with maintenance-free lithium-ion technology and exceptional user-friendliness.

Maximum load capacity: 1,300 kg
Lifting height: Optionally 2,600 mm with 1,300 mm free lift or 3,600 mm with 1,800 mm free lift – ideal for applications with limited clearance height
Li-ion battery: maintenance-free 24V and 100Ah battery
Battery life: approximately 3 hours with continuous use
Charging time: Fully charged in 4 hours
Charging connection: integrated charging cable can be flexibly and easily connected to any standard 230V socket
User access: PIN code system for secure access
Display: Displays battery status, operating hours and error codes

Features

Remaining load-bearing capacity in view

Color markings on the mast indicate the remaining load capacity.

Maintenance-free battery

In contrast to lead-acid batteries, a Li-ion battery is completely maintenance-free.

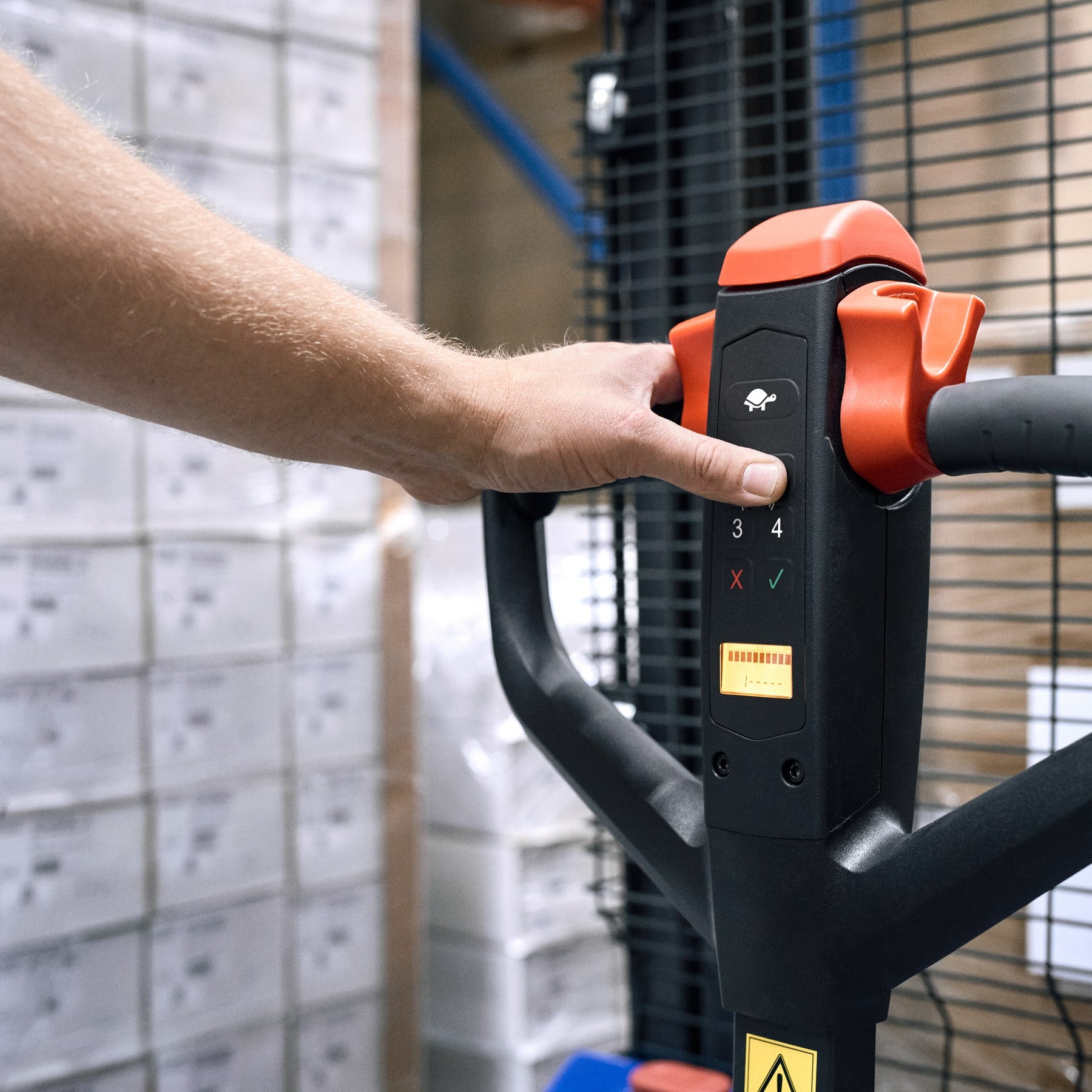

PIN code lock function

Operation is enabled via PIN code and protects against unauthorized use.

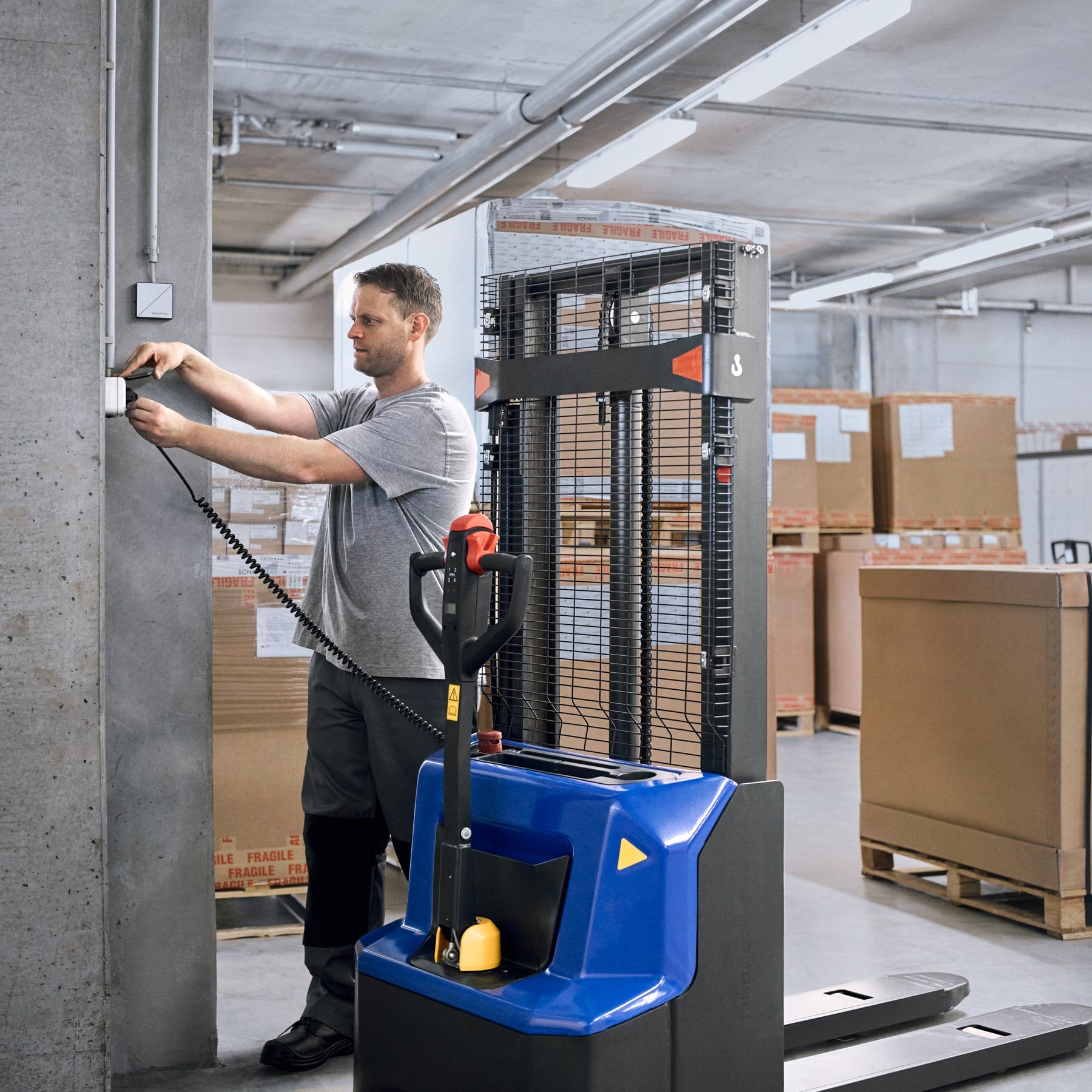

Fast charging

Thanks to lithium-ion technology and an integrated charger, you can recharge at any time using conventional power sockets.

Compact dimensions

Ideal for use in tight spaces or for carrying in a truck.

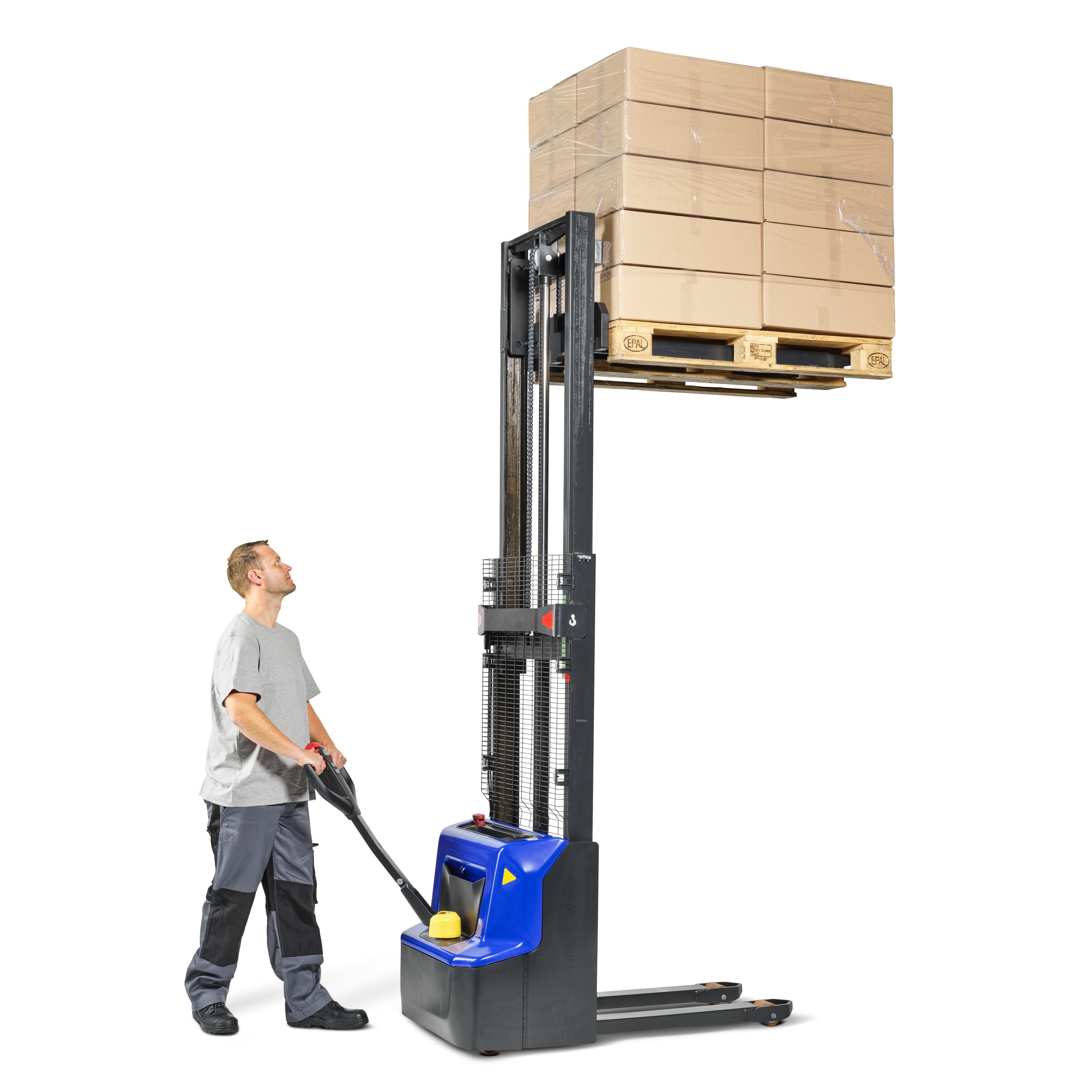

Free lift

Thanks to the free lift, you can lift and move pallets without changing the overall height.

Technical data

General

Capacity

1300 kg

Capacity at maximum lift

800 kg

Weight

670 kg

Forklift licence needed

no

Sound level EN-12053

70 dB

Seal

CE

Warranty

5 years warranty Plus

Brand

Pallit

Product ID

10011576-2652

Wheels

Wheels material

Polyurethane (PU)

Steering wheel diameter

210 mm

Steering wheel width

75 mm

Load roller wheel diameter

80 mm

Fork roller width

93 mm

Lift

Lift height

3600 mm

Free lift

yes

Lift speed, unladen

0.14 m/s

Lowering speed, unladen

0.11 m/s

Mast type

duplex

Lift type

electric

Drive

Travel speed, unladen

4.5 km/h

Creep speed button

yes

Gradeability, unladen

10 %

Max. gradeability, laden

4 %

Drive

electric

Brake

electromagnetic

Battery

Battery type

lithium-ion

Operating time

3 h

Battery charging time

4 h

Battery capacity

100 Ah

Voltage

24 V

Battery voltage

24 V

Battery quantity

1

Battery weight

26 kg

Battery charger

integrated

Delivery

carrier

Delivered as

auf Palette

Delivery requirements

Ramp or forklift required on site for unloading from truck

Links

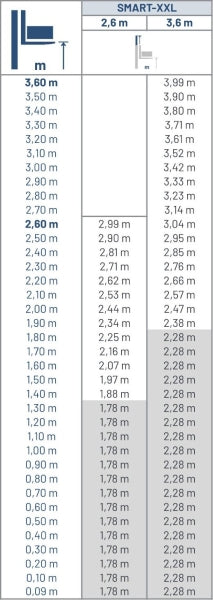

Mast height table

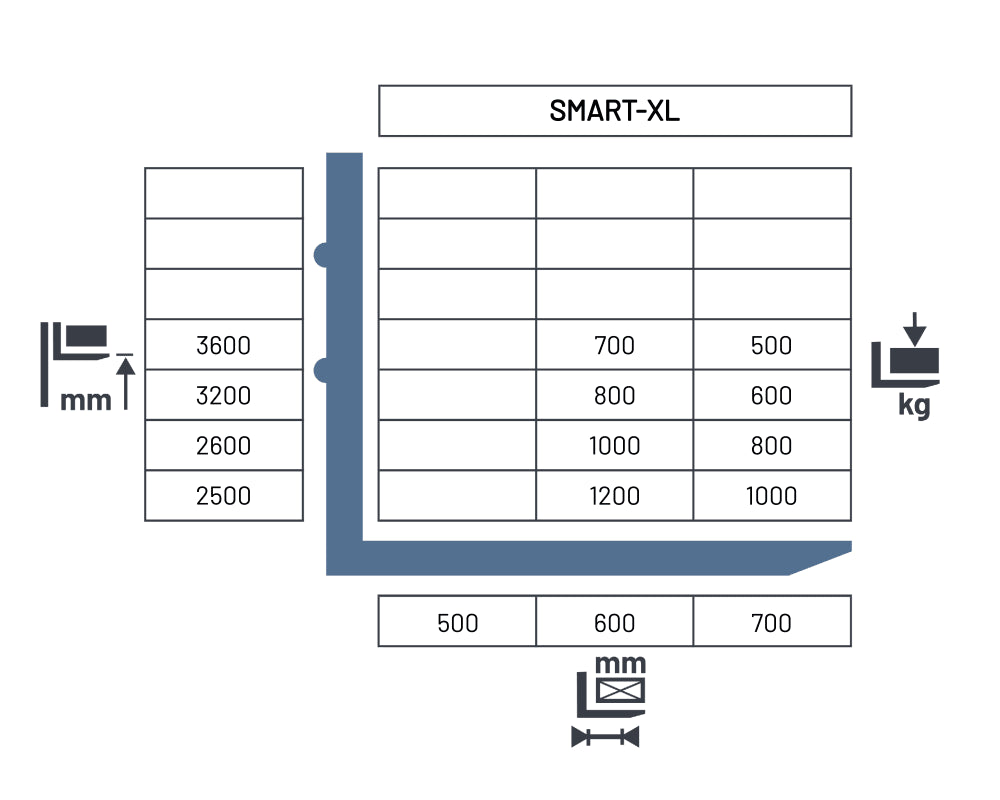

Capacity chart

Product brochure

Product manual

Dimensions

Fork length

1150 mm

l
Lift height

3600 mm

h3
Load centre

600 mm

c
Height, lowered

2280 mm

h1
Height, extended

3990 mm

h4
Tiller height

710/1150 mm

h14
Ground clearance

24 mm

m2
Ground clearance, outer

90 mm

h13
Fork height

60 mm

s
Wheelbase

1097 mm

y

Width

800 mm

b1
Fork width, outer distance

570 mm

b5
Fork width, single fork

180 mm

e
Aisle width for 1200x800

2133 mm

Ast
Turning radius

1300 mm
