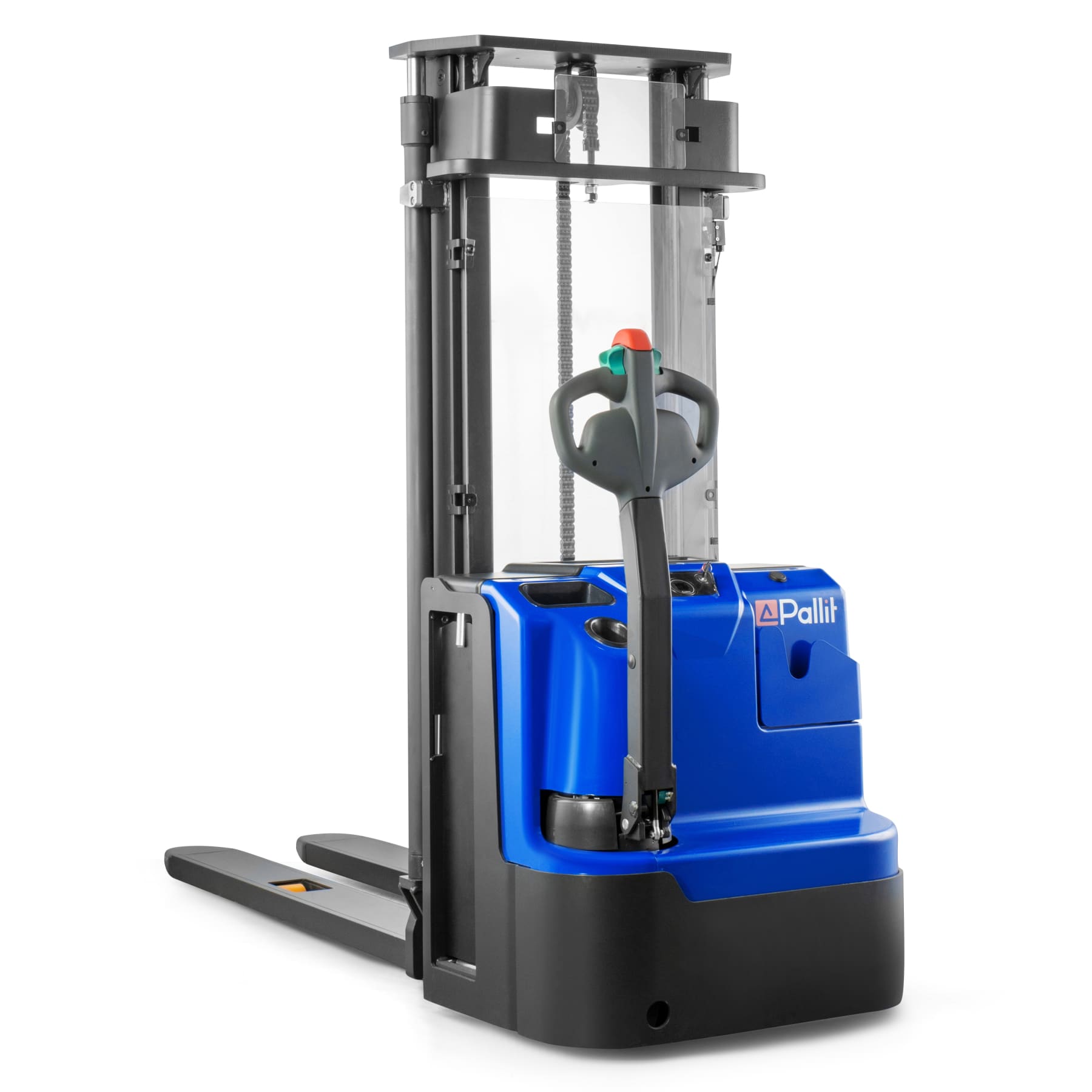

MAXX electric high lift truck with 1.6m long forks for 1,600 kg

MAXX electric high lift truck with 1.6m long forks for 1,600 kg

Move 2 pallets simultaneously and lift 1,600 kg to 2.9 meters.
BACK TO WORK: -20% Sale
12.089 € 14.506,80 € VAT included
5
Five year warranty
+
Options
or request a leasing offer from 250,24 € per month

🔥 -20% discount until 30 September

Available from: Saturday, 2 January

Questions? We’re here to help you

0800 080667

Our MAXX electric high lift truck was specially designed for the efficient handling of heavy palletized loads. The ergonomic operation and well thought-out design make it a reliable tool in logistics and production.

  • Lifting height: Up to 2.9 m with free lift - ideal for low pallet rack warehouses
  • Load capacity: Up to 1,600 kg and high residual load capacity for heavy loads
  • Fork length: 1,600 mm
  • Battery: Large lithium-ion battery with side removal for easy replacement
  • Charging: Flexible charging of the battery at conventional 230 V sockets with an external charger

Technical data

General
Capacity
1600 kg
Capacity at maximum lift
1200 kg
Weight
1340 kg
Forklift licence needed
no
Sound level EN-12053
70 dB
Chassis surface
Powder coated
Colour
Blue
Seal
CE
Warranty
5 years warranty Plus
Brand
Pallit
Product ID
10011627-0
Wheels
Wheels material
Polyurethane (PU)
Steering wheel diameter
230 mm
Steering wheel width
70 mm
Load roller wheel diameter
84 mm
Fork roller width
70 mm
Lift
Lift height
2900 mm
Free lift
yes
Lift motor power
3,2 kW
Lift speed, unladen
0,2 m/s
Drive
Drive motor power
1,7 kW
Travel speed, unladen
5,7 km/h
Gradeability, unladen
12 %
Max. gradeability, laden
6 %
Drive
Electrical
Battery
Battery type
lithium-ion
Operating time
4 h
Battery capacity
200 Ah
Voltage
24 V
Battery voltage
24 V
Battery quantity
1
Battery weight
150 kg
Battery charger
External charger
Delivery
Delivery
Special transport
Delivered as
rolling (fully assembled)
Delivery requirements
Ramp or forklift required on site to unload from lorry
Links

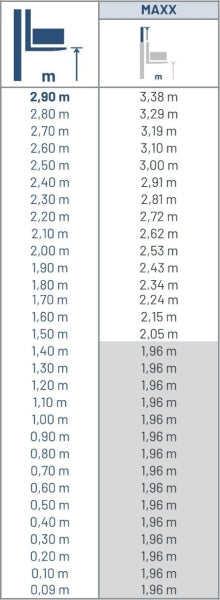

Mast height table
Product brochure

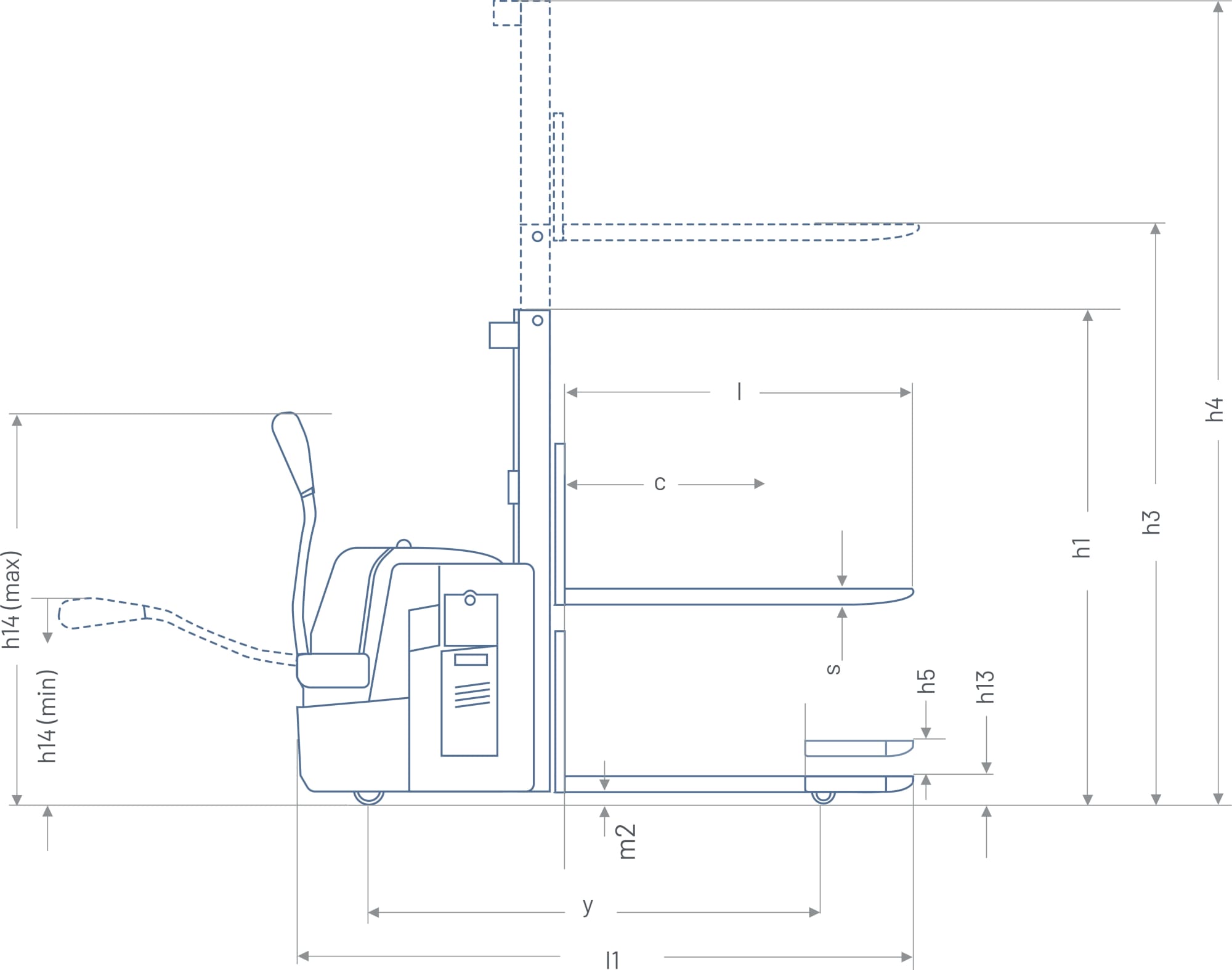

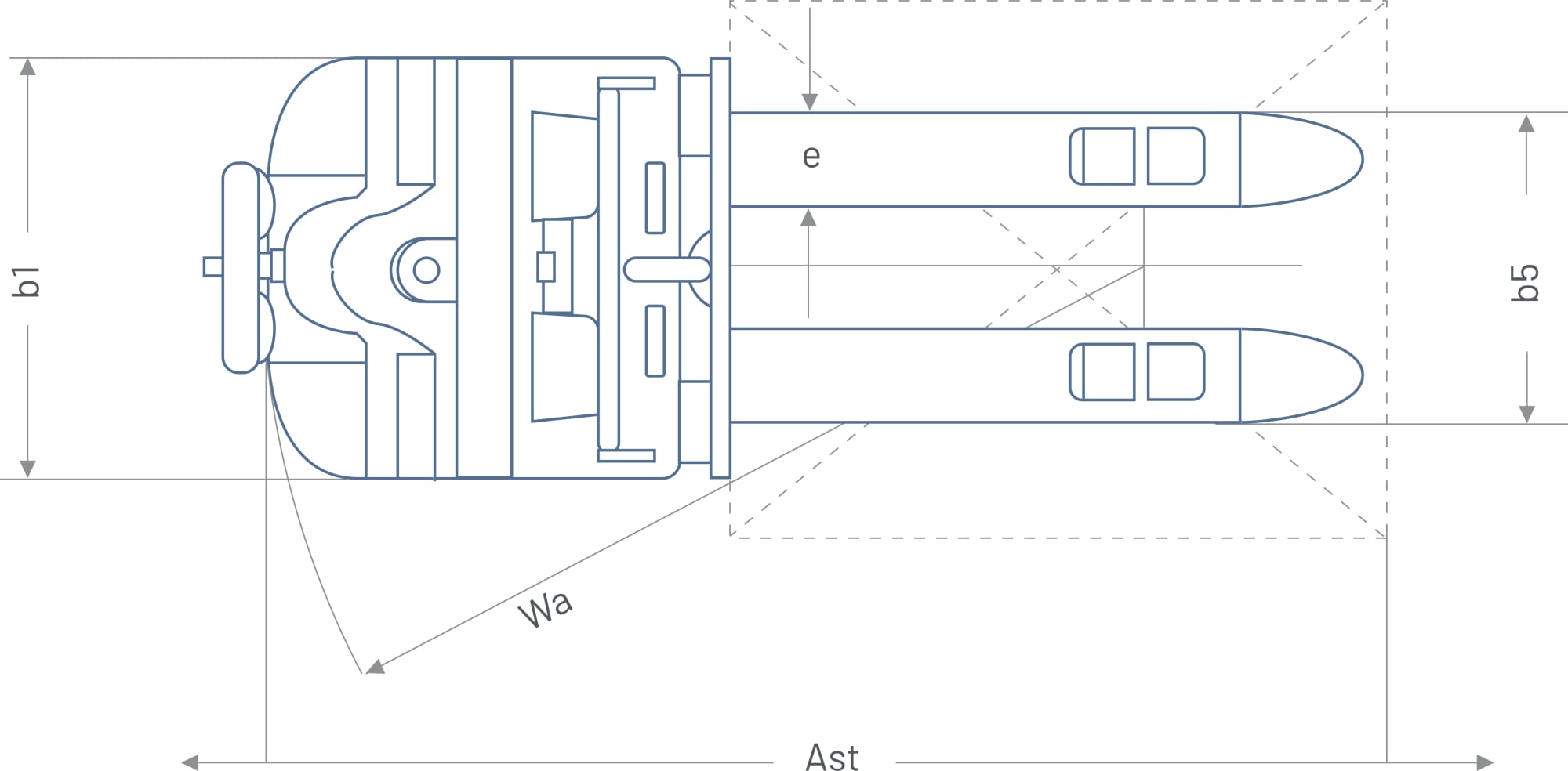

Dimensions

  • Capacity
    Fork length
    Lift height
    Weight
    Wheels material
    Battery capacity
    Battery type
    Load centre
    Max. gradeability, laden
    Operating time
    Warranty
    Free delivery
    Customer Reviews
    Price

  • MAXX electric high lift truck with 1.6m long forks for 1,600 kg

    1600 kg
    1600 mm
    2900 mm
    1340 kg
    Polyurethane (PU)
    200 Ah
    lithium-ion
    800 mm
    6 %
    4 h
    5 years warranty Plus
