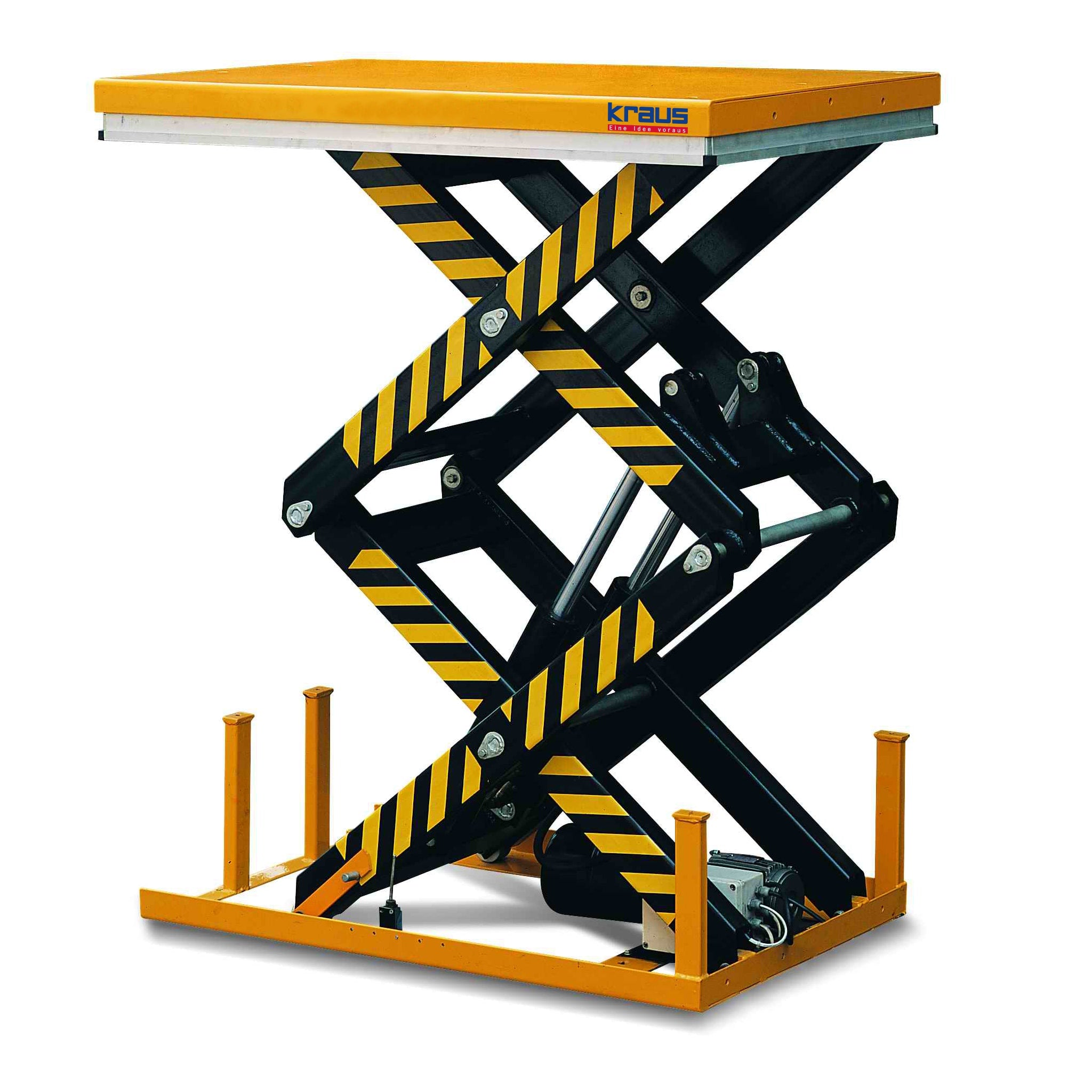

0800 080667Double scissor lifting table with 1000 kg - just right for loading and unloading, as well as filling in warehouses and production or when picking: completely ergonomic thanks to the electric lift.
- Load: The 1300 x 820 mm platform can accommodate goods weighing up to 1000 kg when evenly distributed
- Lifting: Simply press the button and raise the platform up to 1780 mm
- Performance: The 2 kW motor enables the lift within 45 seconds - up to 10 lifting cycles per hour
- Construction: Lifting table manufactured according to EN1570-1
- Easy maintenance: Simply fold down the maintenance supports or screw them into the floor frame
- Protection: IP54 against dust and splash water
- Safety: With built-in pressure relief valve, pipe rupture valve on the cylinder and safety shut-off bar under the platform
- Generation version:Internal
Technical data
General
Capacity
1000
kg
Weight
210
kg
Control unit, voltage
24
V
Brand
Kraus
Product ID
11180004-0
Lift
Lift height
1780
mm
Lift speed, unladen
0.033
m/s
Lift cycles, max. per hour
10
Drive
Drive motor power
2
kW
Delivery
Delivery
Forwarding agency
Delivered as
On a pallet
Dimensions
-
Lift height1780 mmh3
-
Lift height, effective1475 mmh12
-
Height1780 mmh14/h4
-
Length1300 mml1
-
Table height, min.305 mmh1/h13
-
Table dimensions1300 x 820 mml1 x b1
-
Width820 mmb1
