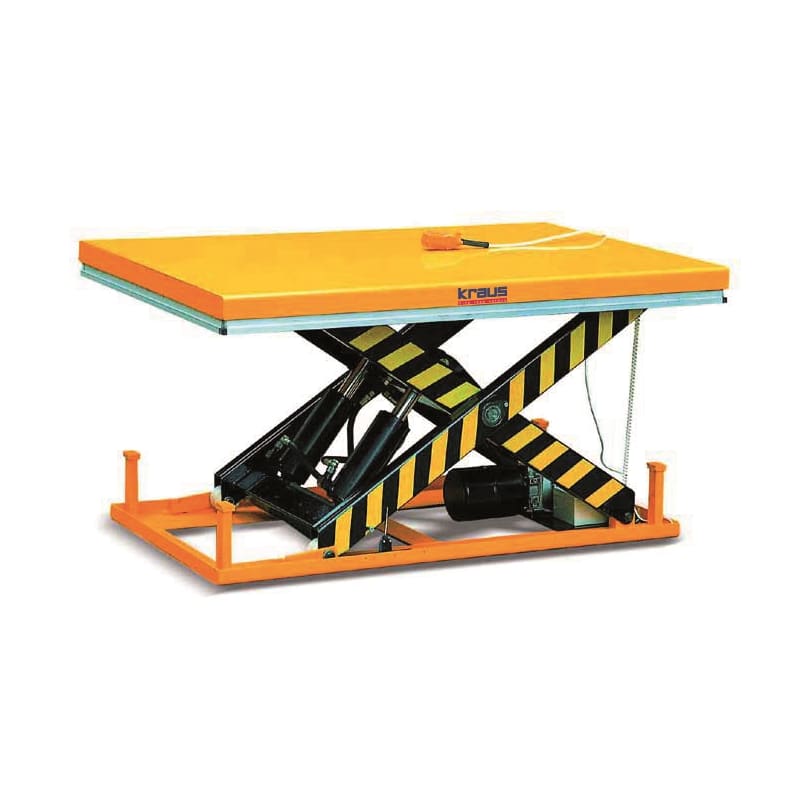

Lifting table 1300x850 mm for 2000 kg from Kraus

hubtisch für 2000kg mit 1300 x 850mm plattform von kraus 1

Lifting table 1300x850 mm for 2000 kg from Kraus

Name: Lifting table 1300x850 mm for 2000 kg from Kraus
Brand: Kraus
SKU: 11180009-0
Price: 2299.0 EUR
Availability: InStock

2.299,00 € 2.758,80 € VAT included

SKU 11180009-0

This lifting table with a 2000 kg and 1300x850 mm platform supports lifting and lowering work with pallets or individual items. The perfect helper in the warehouse and production as well as for order picking. Work ergonomically thanks to the electric lift.

Performance: Raise the platform to maximum height in just 25 seconds with the 2 kW lifting motor
Lift: Simply press the corresponding button and move the 1300x850 mm platform from 230 mm to 770 mm
Load: The platform can support a load of 2000 kg when evenly distributed
Charging: Control voltage of 24 V ; To charge, connect to high voltage (3 x 400 V / 50 Hz)
Safety: With pressure relief valve, pipe rupture valve on the cylinder and safety shut-off bar below the platform - protected against dust and splash water according to IP54
Easy maintenance: Simply fold down the maintenance supports or screw them into the floor frame

Technical data

General

Capacity

2000 kg

Weight

235 kg

Material

Steel

Control unit, voltage

24 V

SKU

11180009-0

Brand

Kraus

Lift

Lift height

770 mm

Lift speed, unladen

0.022 m/s

Lift cycles, max. per hour

10

Drive

Drive motor power

2 kW

Delivery

Forwarding agency

Delivered as

On a pallet

Dimensions

Lift height

770 mm

h3
Lift height, effective

770 mm

h12
Height

230 mm

h14/h4
Length

1300 mm

l1
Table height, min.

230 mm

h1/h13

Table dimensions

1300x850 mm

l1 x b1
Width

850 mm

b1

Capacity

Lift height

Table dimensions

Weight
