The inexpensive alternative to the hand pallet truck for light applications.
Outlet
– 7 %
Original Price
949 €
Current Price
879 €
1.054,80 €
VAT included
SKU 50000110-0

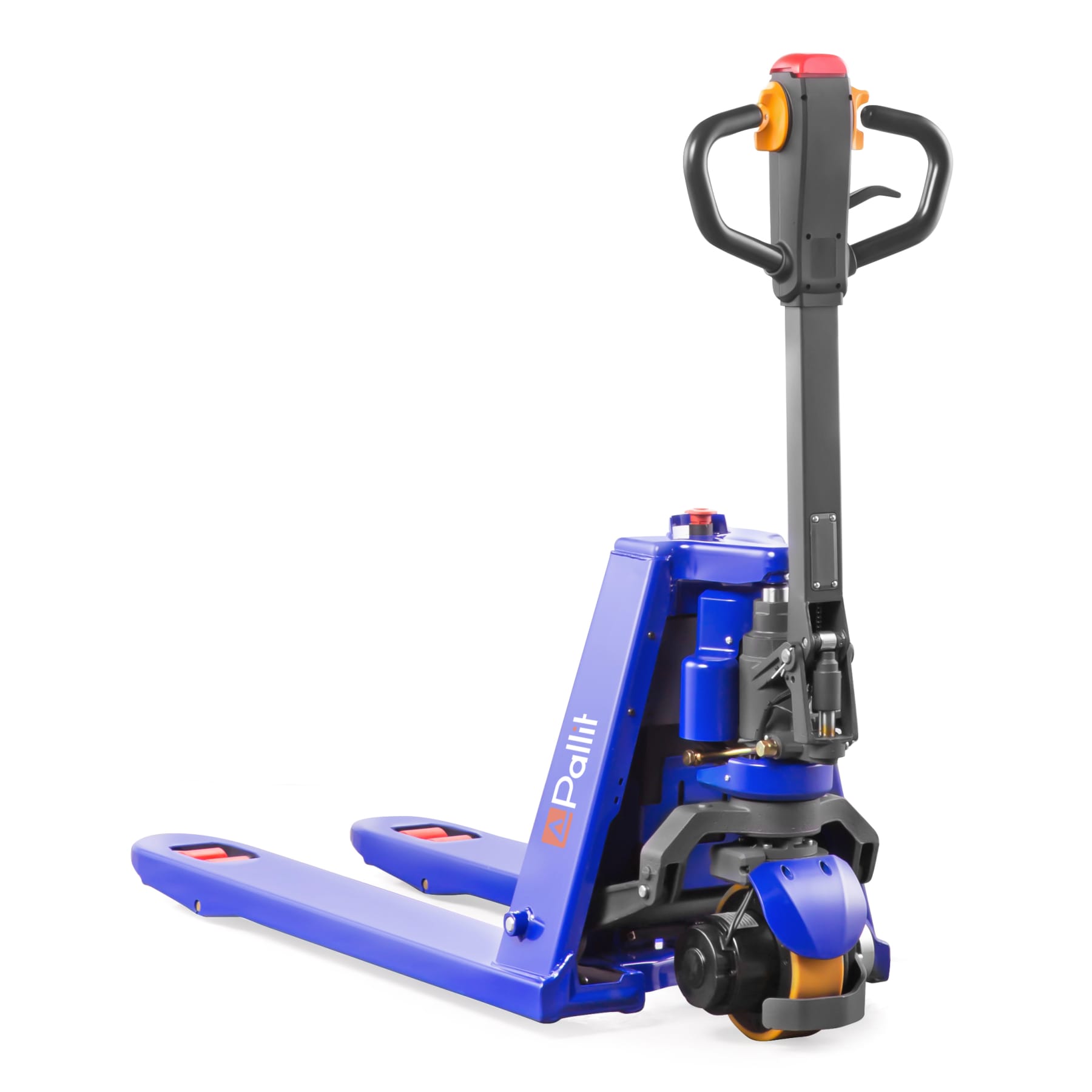

This Low Cost Lithium Pallet Truck 1500kg is the perfect entry-level electric model and it simplifies daily work in the logisitics industry. Thanks to its low tare weight of only 115 kg, it can easily be taken along on a truck. The high battery efficiency enables optimal, in-house transport of goods.
- Fork length: 1150 mm
- Load capacity: 1500 kg
- Lift height: 1200 mm
- Drive: electric
-
Battery capacity / voltage: 20 Ah / 24 V
- Tyres: Polyurethan
Features

Longer application

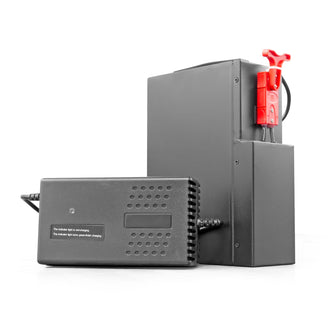

Simply change the battery for longer periods of use.
Easy handling

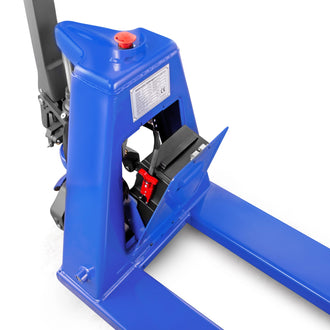

The battery can be changed with just one movement - without additional tools.
Safe and ergonomic
Thanks to the emergency stop switch, the pallet truck can be stopped easily and quickly at any time.
Reliable basic quality
The ONE-S is stable and works reliably.

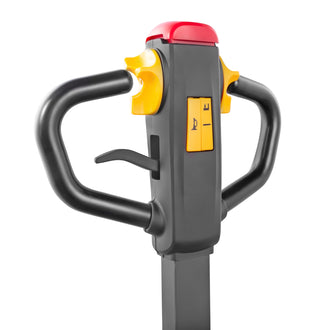

Ergonomic handle
Execute all functions intuitively by using the multifunctional element on the tiller head.Technical data
General
Capacity
1500
kg
Weight
115
kg
Sound level EN-12053
70
dB
Chassis surface
powder coated
Seal
CE
Warranty
2 Jahre Gewährleistung
SKU
50000110-0
Brand
Pallit
Wheels
Wheels material
Polyurethane (PU)
Steering wheel diameter
210
mm
Steering wheel width
70
mm
Fork roller type
powder coated
Load roller wheel diameter
80
mm
Fork roller width
70
mm
Lift
Lift height
110
mm
Lift motor power
0.58
kW
Lift speed, unladen
0.02
m/s
Lowering speed, unladen
0.16
m/s
Lift type
electric
Drive
Drive motor power
0.75
kW
Travel speed, unladen
4.8
km/h
Creep speed button
No
Gradeability, unladen
20
%
Max. gradeability, laden
5
%
Drive
electric
Brake
electric brake
Battery
Battery type
lithium-ion
Operating time
3
h
Battery charging time
3
h
Battery capacity
20
Ah
Voltage
24
V
Battery voltage
24
V
Battery quantity
1
Battery weight
5.5
kg
Battery charger
External charger
Delivery
Delivery
Forwarding agency
Delivered as
on pallet
Links

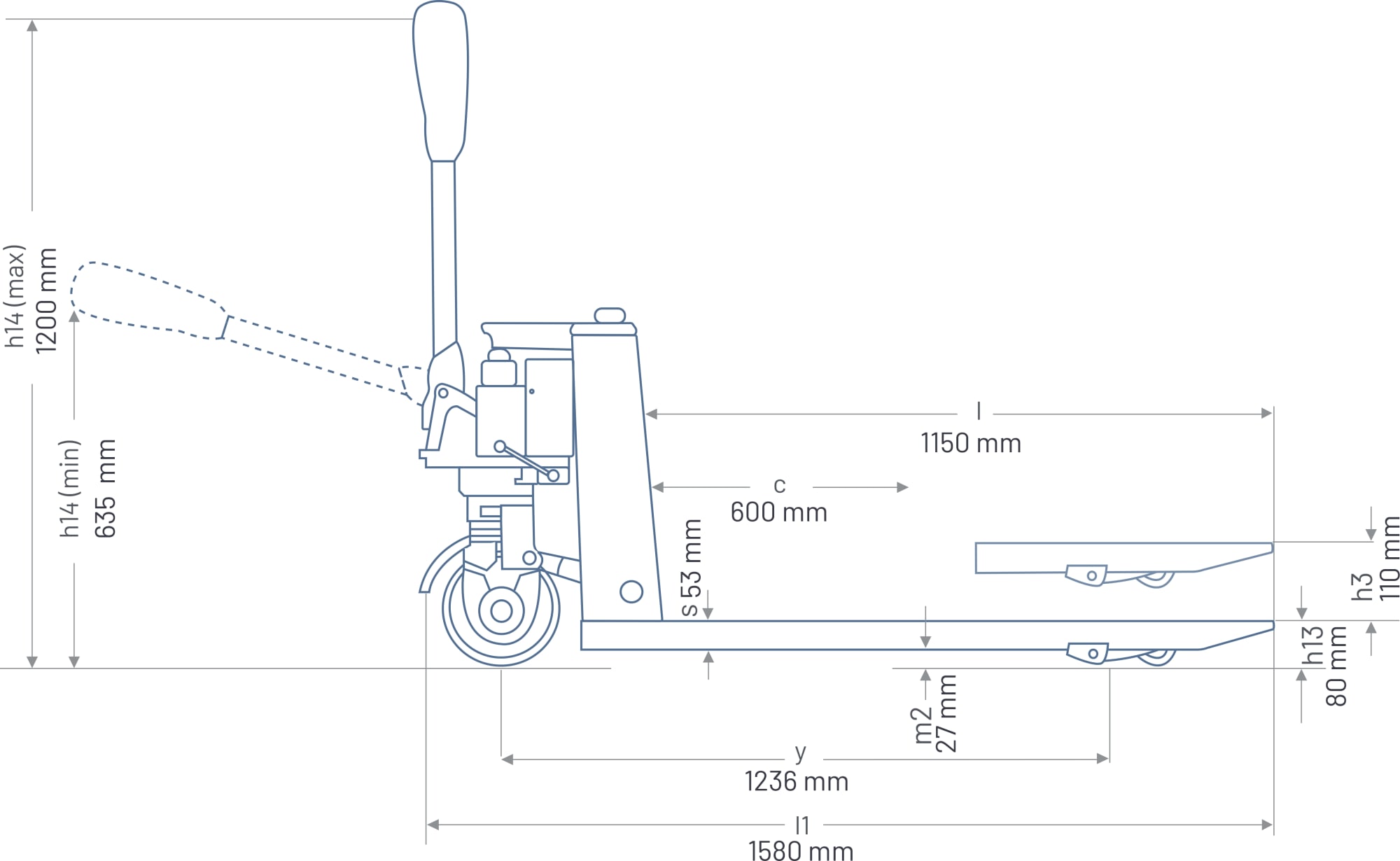

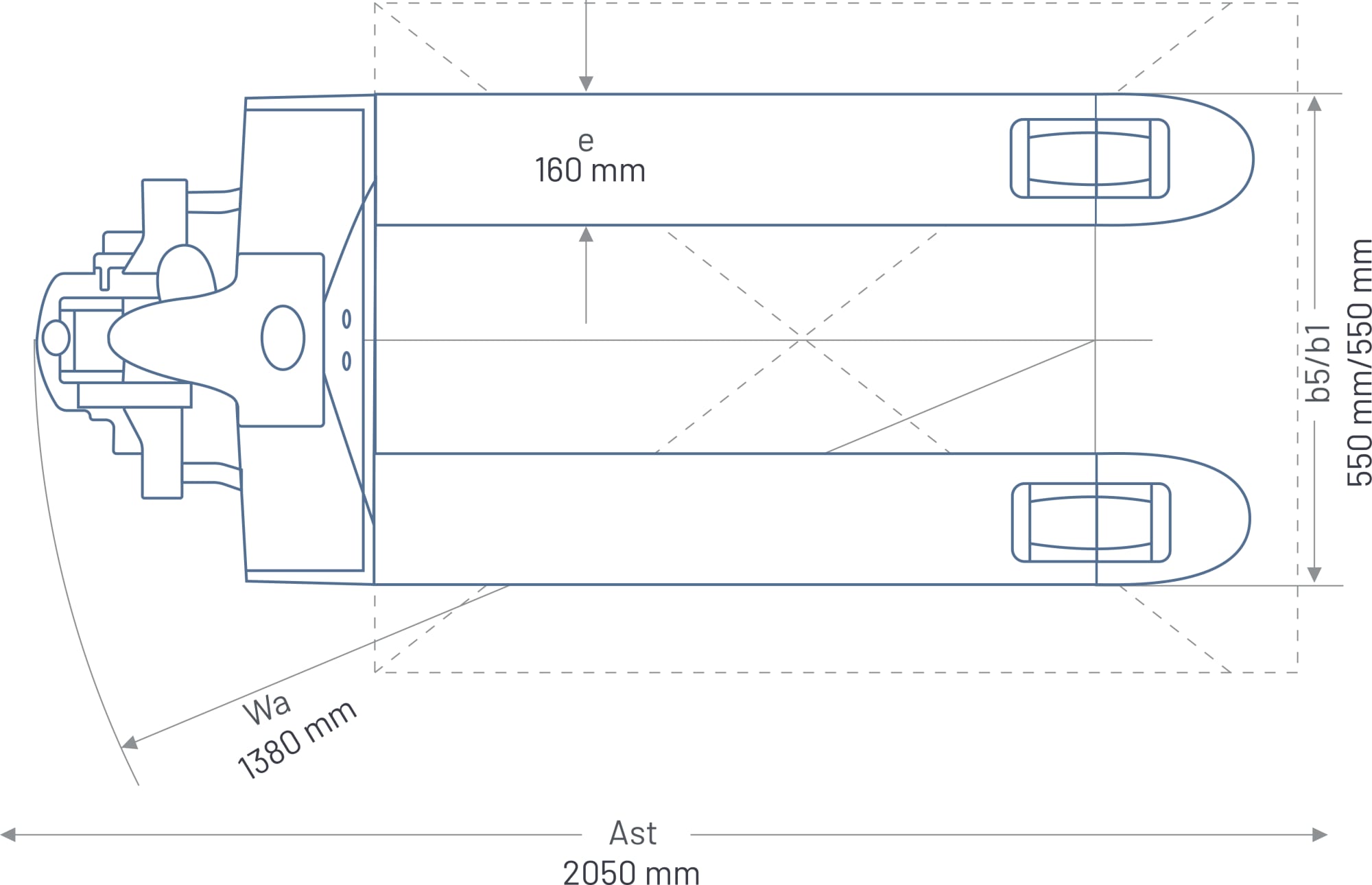

Dimensions
-
Fork length1150 mml
-
Lift height110 mmh3
-
Load centre600 mmc
-
Tiller height1200 mmh14
-
Length1580 mml1
-
Ground clearance27 mmm2
-
Ground clearance, outer80 mmh13
-
Wheelbase1236 mmy

-
Width550 mmb1
-
Fork width, outer distance550 mmb5
-
Fork width, single fork160 mme
-
Aisle width for 1200x8002050 mmAst
-
Turning radius1380 mmWa
-
Distance between forks230 mm
